Description

The F SCAN2 Version 2005 offers a variety of improvements and options compared to earlier models. All settings and commands are entered with the display pen on the graphic touch screen. The device has a dedicated output port for square wave signals, dc-offset, in addition to the multi-signal output port. All connectors supporting applications are accessible from the front.

F-SCAN2 models

• BASIC (without communications port)
• USB (with USB communications port and additional accessories)
• RS232 (with USB-to-RS cable FTB222)

• Fast reaction to commands entered on the touch screen

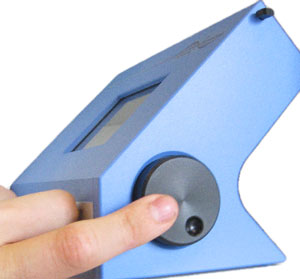

• A JOGGER-wheel is integrated into the housing to ease adjustment of amplitudes

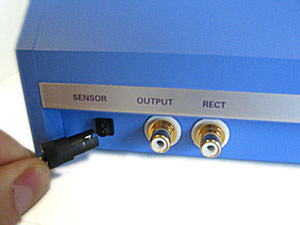

• DIRP analysis function with graphic display of results
• Multi-signal OUTPUT port for sine- and square wave signals
• Dedicated output port (RECT) for square wave signals, dc-offset
• Dedicated POWER PORT with amplified output to drive accessories
• Feature to assign amplitudes to square wave signals as a function of the frequency value
• Feature to store 50 data sets of up to 50 frequency values, with their settings, plus a related set of DIRP results with each data set – if applicable
• Features to select individually: SENSITIVITY adjustment, WOBBLE, PULSE, SWEEP, Sweep To Next
• Frequency range and step size for DIRP and SWEEP defined by the user
• Operating range for sine wave signals 0.01 Hz to 15 MHz
• Operating range for square wave signals 0.01 Hz to 1 MHz
• Individual runtime can be assigned to each frequency value
• Integrated library function with more than 580 line items
• „Soft ramping“ when switching from one frequency value to the next

Multi-signal OUTPUT port: All signal forms are available on this port. The device switches automatically to square wave signals if the frequency value output is below 65’000 Hz and to sine wave signals for frequency values above 65’000 Hz. The user can override this assignment at any time with a touch on the wave form icon on the display

Shipping list by model

F‑SCAN2 BASIC

• Universal power supply
• Stainless steel handholds
• Application cable for handholds
• Finger sensor
• Instruction manual

• Universal power supply
• Stainless steel handholds
• Application cable for handholds
• Finger sensor
• Two sets of gel pad electrodes (sticky pads)
• Application cable for handholds & gel pad electrodes
• USB cable
• Software
• Instruction manual

• The same as the USB version
• except that the communication uses
• the USB-to-RS cable FTB222.
• This option can communicate also
• with a SATELLITE device.



Product design, specifications and prices are subject to change without prior notice.
